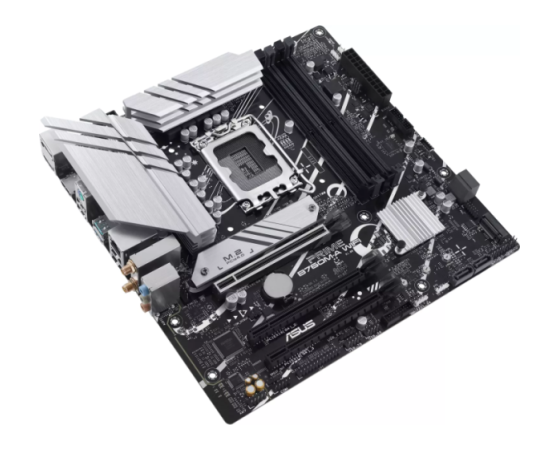

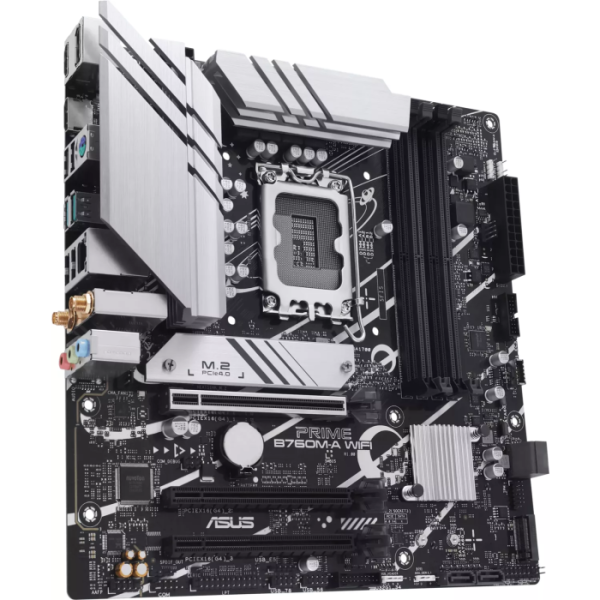

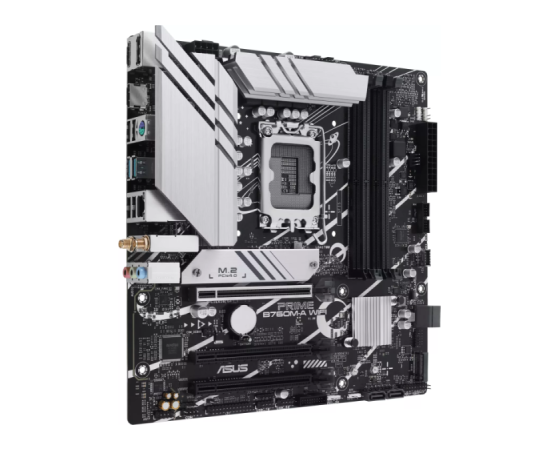

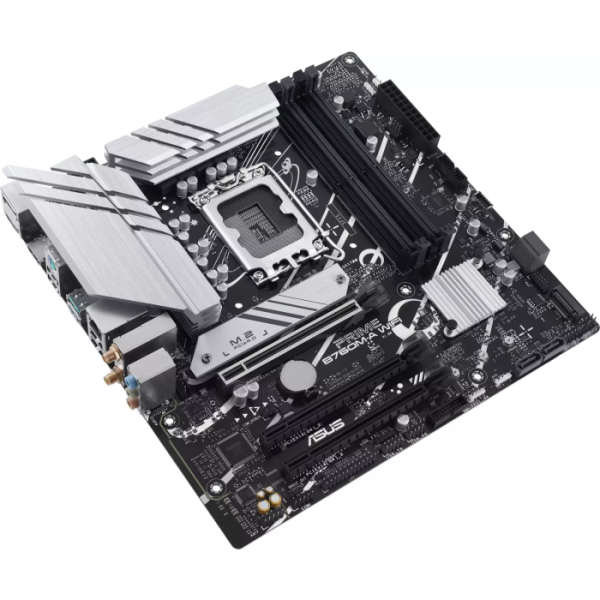

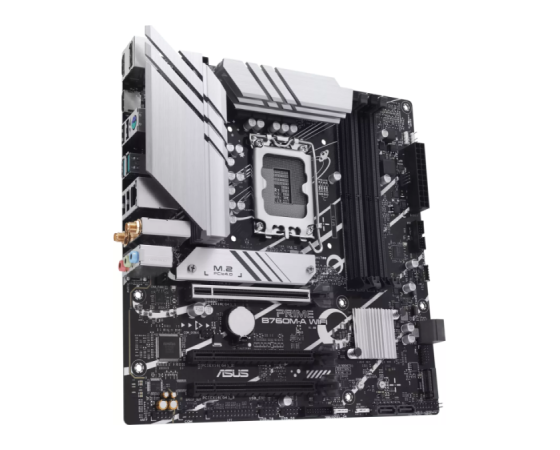

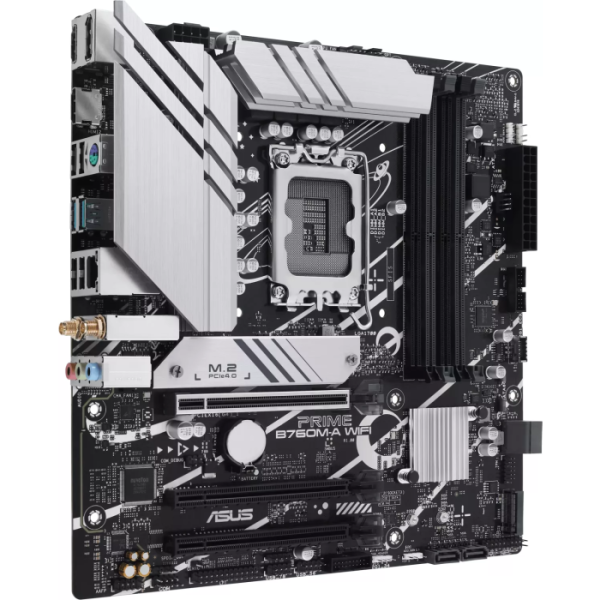

PODNOŽJE: INTEL LGA 1700
ZA PROCESORJE: 13th/12th Generation Core i7/i5/i3/Pentium/Celeron
FORMAT: mATX format 24.4 cm x 24.4 cm
VEZNI ČIP: INTEL B760
POMNILNIK:
4 x DDR5 DIMM ECC/non-ECC 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz) do skupno 128GB kapacitete, Dual Channel Memory Architecture, Intel® Extreme Memory Profile (XMP), OptiMem II
GRAFIKA: DA - preko CPU
RAID: RAID 0, RAID 1, RAID 5, and RAID 10
RAZŠIRITVENE REŽE:
1 x PCI Express 4.0/3.0 x16
1 x PCI Express 4.0 x4
1 x PCI Express 4.0 x1
MREŽNA KARTICA: Realtek 2.5GbE LAN chip
ZVOČNA KARTICA: Realtek codec High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
1 x USB 2.0 header supports 1 additional USB 2.0 port
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function

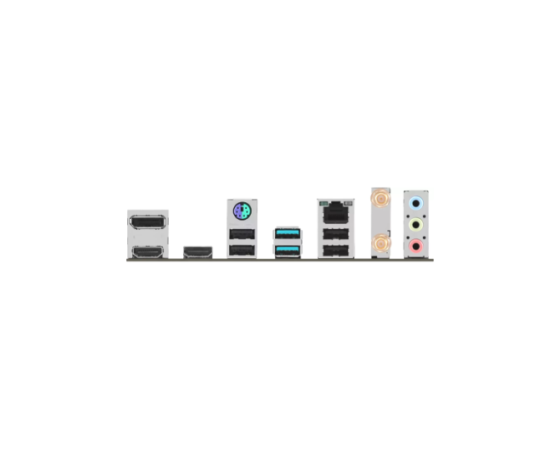

ZUNANJI PRIKLJUČKI:
2 x USB 3.2 Gen 2 ports (2 x Type-A )
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
2 x HDMITM ports
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
DODATNO:

Spletna stran proizvajalca: https://www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-wifi/
