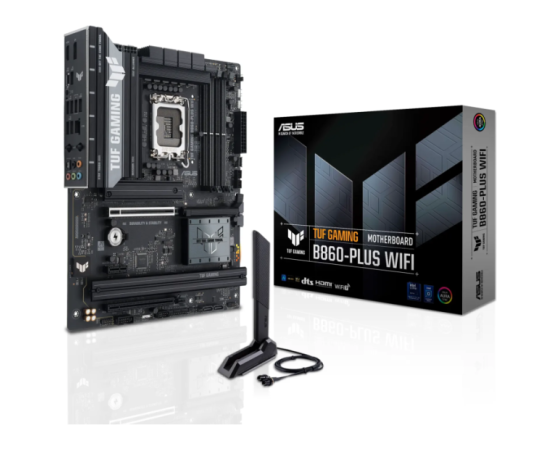

PODNOŽJE: INTEL LGA 1851
ZA PROCESORJE: Intel® Core™ Ultra Processors (Series 2)
FORMAT: ATX format 30.5 cm x 24.4 cm
VEZNI ČIP: INTEL B860
POMNILNIK:
4 x DDR5 DIMM ECC/non-ECC do 8666+ MHz) do skupno 256GB kapacitete, dual channel in XMP podpora, ASUS Enhanced Memory Profile III(AEMPIII)
GRAFIKA: DA - preko CPU
RAID: DA  Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10
RAZŠIRITVENE REŽE:
Intel Core Ultra Processors(Series 2)
1 x PCIe 5.0 x16 slot
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
MREŽNA KARTICA: Realtek 2.5Gb Ethernet z ASUS LANGuard
ZVOČNA KARTICA: Realtek 7.1 Surround Sound High Definition Audio CODEC
NOTRANJI PRIKLJUČKI:
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C® )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) header

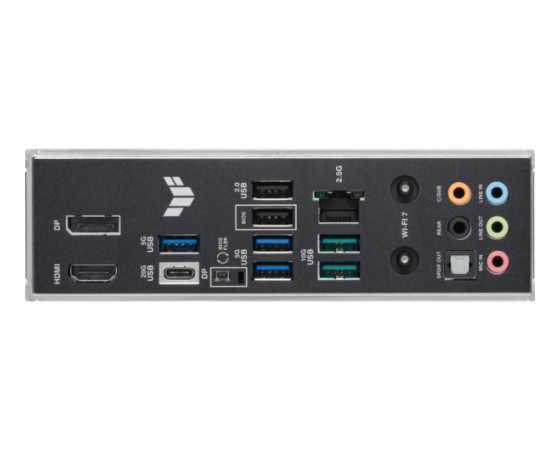

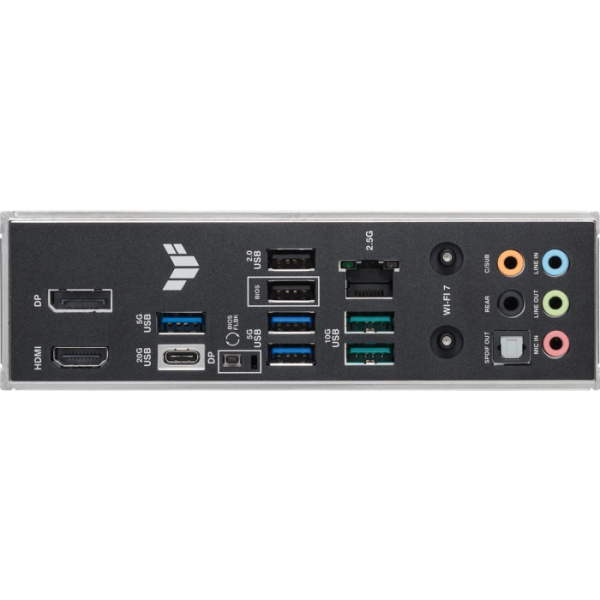

ZUNANJI PRIKLJUČKI:
1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
2 x USB 10Gbps ports (2 x USB Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)
2 x USB 10Gbps ports (2 x USB Type-A)
3 x USB 5Gbps ports (3 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
DODATNO:

ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
ASUS DriverHub
ASUS GlideX
TUF GAMING CPU-Z
Adobe Creative Cloud (Free Trial)
DTS Audio Processing
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

Spletna stran proizvajalca: https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-b860-plus-wifi/
