PODNOŽJE: AMD AM5
ZA PROCESORJE: AMD Ryzen 7000/8000/9000 Series
FORMAT: mATX format 24.4 cm x 24.4 cm
VEZNI ČIP: AMD B650
POMNILNIK:
4 x DDR5 DIMM non-ECC, podpora za 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5600 / 5200 / 4800 MHz, do skupno 256 GB kapacitete, Dual channel memory architecture, podpora za non-ECC Un-buffered DIMM module, podpora za AMD EXPO™ in Extreme Memory Profile (XMP)
RAID: DA (0,1,10)
RAZŠIRITVENE REŽE:
1 x PCI Express 4.0 x16
1 x PCI Express 3.0 x1
MREŽNA KARTICA: Realtek 2.5 GbE LAN chip
ZVOČNA KARTICA: Realtek High Definition Audio codec (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
več x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header
1 x Clear CMOS jumper

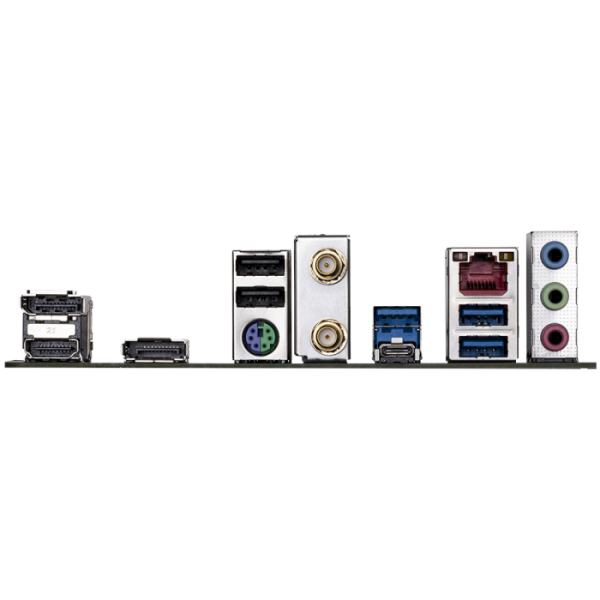

ZUNANJI PRIKLJUČKI:
4 x USB 2.0/1.1 ports
2 x USB 3.2 Gen 1 ports
1 x USB-C port (če je prisoten na plošči)
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
1 x Q-Flash Plus button
DODATNO:
Digitalni VRM
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software
Norton Internet Security (OEM version)
LAN bandwidth management software
