PODNOŽJE: Intel LGA1700
ZA PROCESORJE: Intel Core 12./13./14. generacije
FORMAT: mATX format 24,4cm x 24,4cm
VEZNI ČIP: Intel B760 Express
POMNILNIK:
4 x DDR5 DIMM, podpora za do 192 GB kapacitete, Dual Channel architecture, podprti profili XMP; frekvence 7600(OC) / 7400(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400 / 6200 / 6000 / 5800 / 5600 / 5400 / 5200 MHz
RAID: DA (0,1,5,10) – SATA RAID
RAZŠIRITVENE REŽE:
1 x PCI Express 5.0 x16
1 x PCI Express 3.0 x16 (deluje v x4 načinu)
1 x PCI Express 3.0 x1
MREŽNA KARTICA: 2.5 GbE LAN
ZVOČNA KARTICA: Realtek Audio CODEC High Definition Audio (2/4/5.1/7.1-channel)
NOTRANJI PRIKLJUČKI:
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
3 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 3.2 Gen 1 Type-C header
2 x USB 2.0 headers
1 x Trusted Platform Module header
1 x Clear CMOS jumper

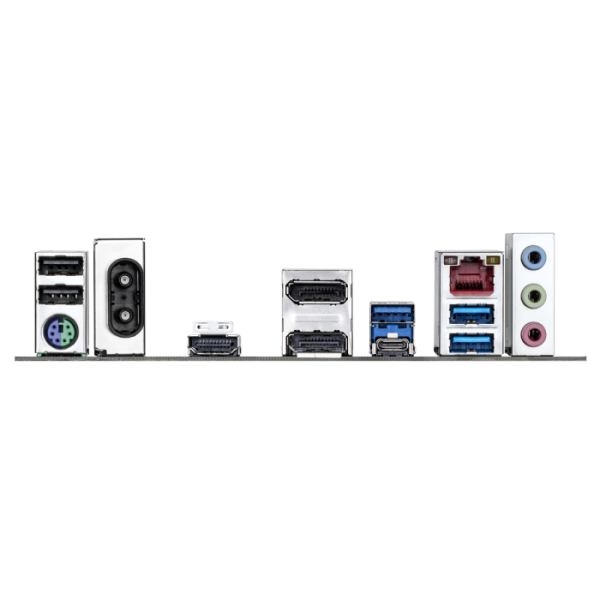

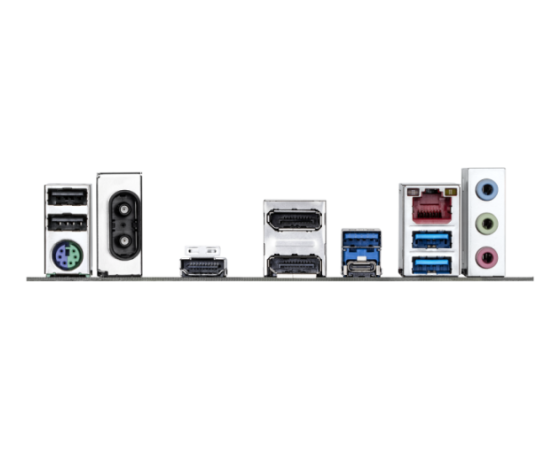

ZUNANJI PRIKLJUČKI:
2 x USB 2.0/1.1 ports
4 x USB 3.2 Gen 1 ports
1 x HDMI port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
1 x Q-Flash Plus button
1 x Wi-Fi 6E antena priključek (dual-band)
DODATNO:
Wi-Fi 6E
Bluetooth 5.3
iTE I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
BIOS
1 x 256 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash
Support for Q-Flash Plus
Bundled Software Norton® Internet Security (OEM version)
