Tehnične podrobnosti

Blagovna znamka	UBIQUITI
Zaloga	Na zalogi

Podroben opis

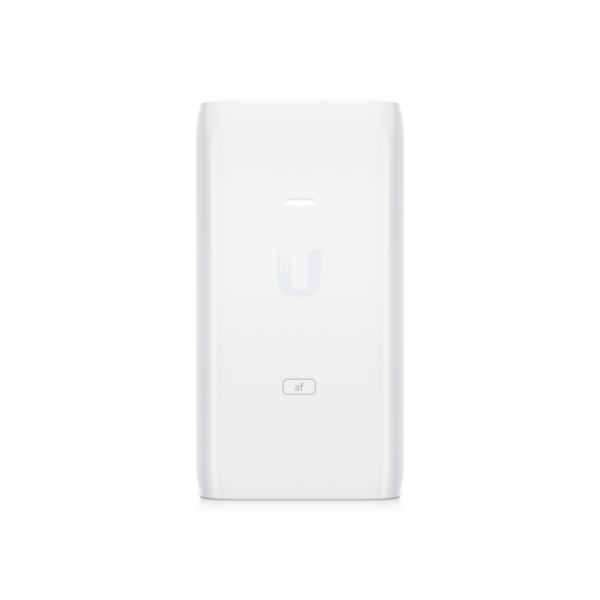

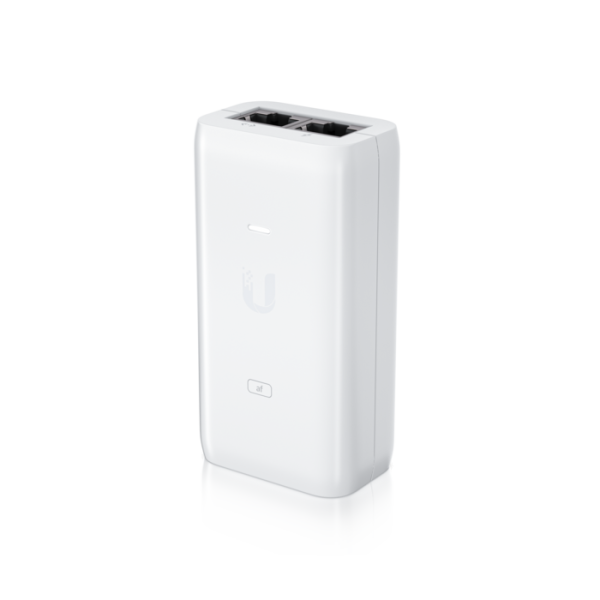

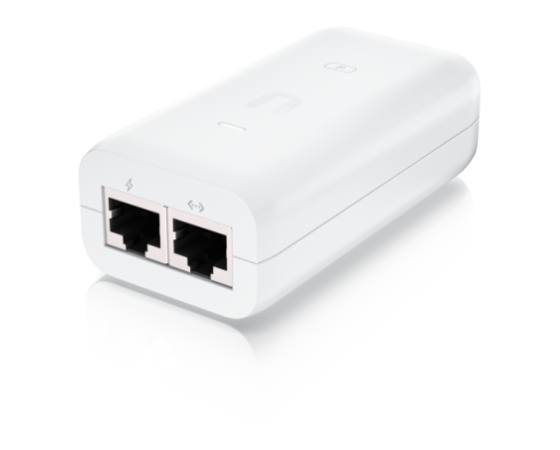

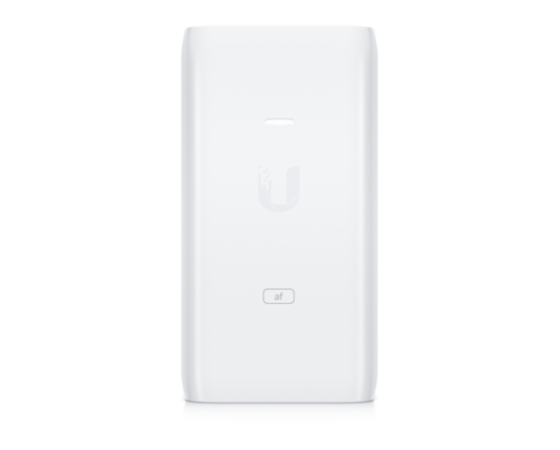

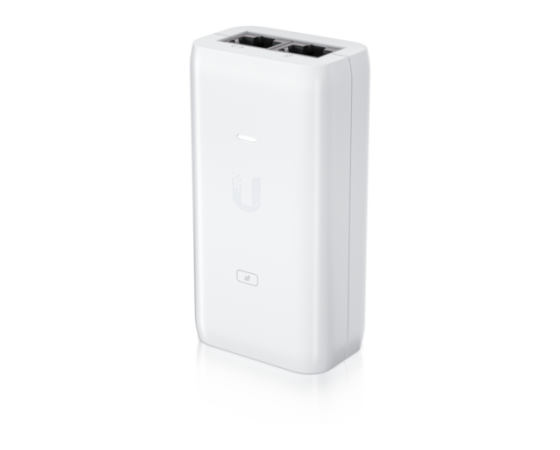

Adapter, ki lahko napaja naprave UniFi PoE z aplikacijami brezžične mreže ali razbremeni odvisnosti od napajanja stikala PoE.

Lastnosti:
Zagotavlja do 15W PoE
Združljivo z U6 Mesh, Camera G4 Pro in drugimi napravami PoE
Zaščita pred prenapetostjo, najvišjim impulzom in nadtokovno zaščito
AC kabel z ozemljitvijo
LED indikator za spremljanje stanja

SPECIFIKACIJE:

U-POE-af
Dimensions	86 x 46 x 33 mm
Dimensions	(3.39 x 1.81 x 1.30")
Weight	100 g
Weight	(3.53 oz)
Output Voltage	48VDC @ 0.32A
LAN Activity Indicator	No
Gigabit LAN Port	Yes
Remote Reset Capability	Yes
Reset Button	No
Rated Voltage	100-240VAC @ 50/60Hz
Input Current	500mA @ 90VAC
Inrush Current	<100A Peak @ 25°C
Efficiency	84.25+%
Output Ripple	200mV p-p
Switching Frequency	65 kHz
Line Regulation	≤ 3%
Load Regulation	≤ 5%
2-Pair Powering	Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering	–
Operating Temperature	0 to 40° C
Operating Temperature	(32 to 104° F)
Storage Temperature	-30 to 70°C
Storage Temperature	(-22 to 158° F)
Operating Humidity	5 to 90% Noncondensing

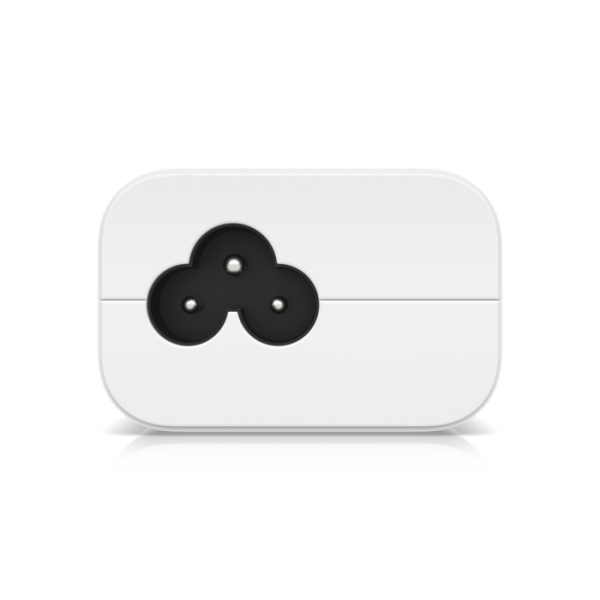

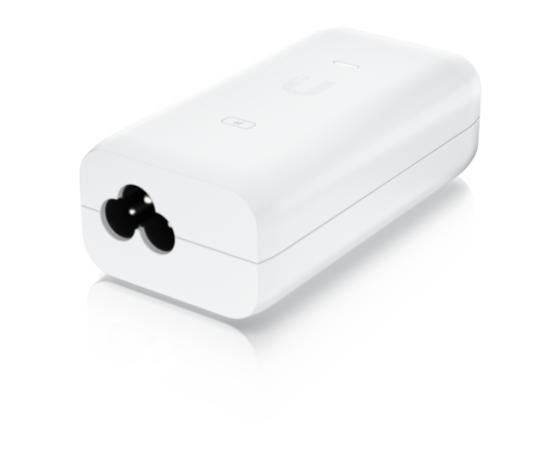

AC Connector	IEC-320 C6

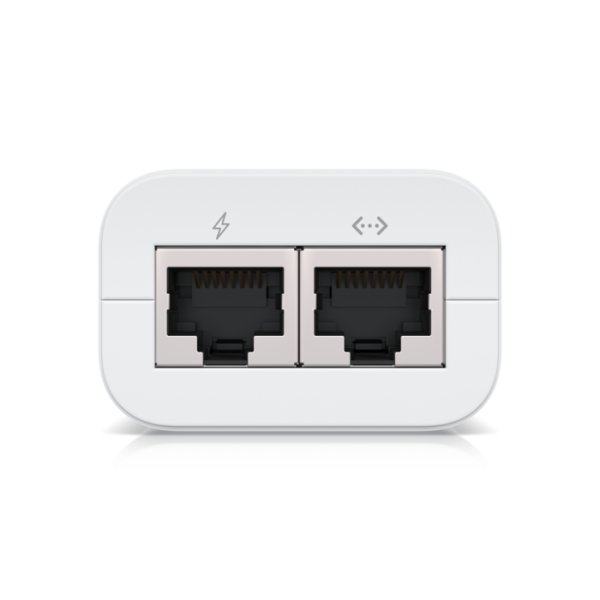

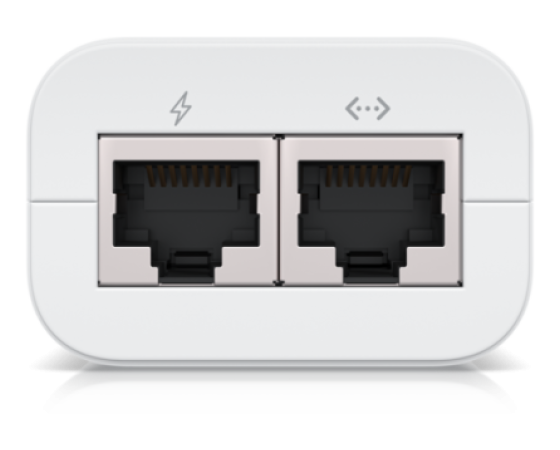

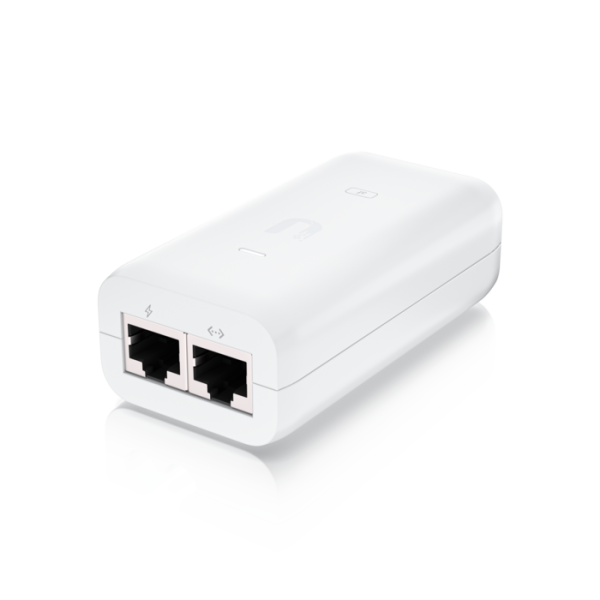

Data IN / POE	RJ45 Shielded Socket
Surge Protection	Difference and Common Mode
Clamping Protection	11V Data, 60V Power
Max. Surge Discharge	1500A (8/20 μs) Power
Peak Pulse Current	36A (10/1000 μs) Data
Shunt Capacitance	<5 pF data
Response Time	<1 ns

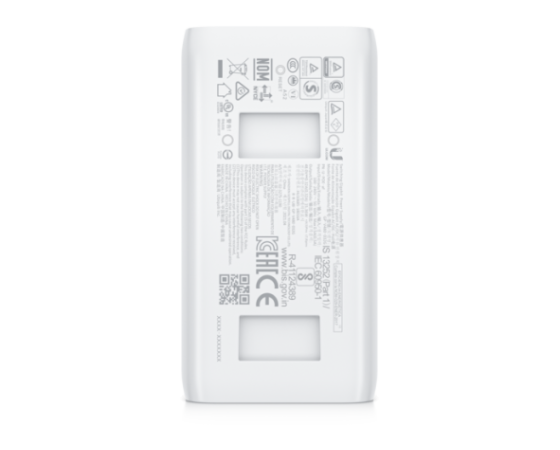

Certifications	CE, FCC, IC, UL

Uradna stran proizvajalca: https://store.ui.com/collections/operator-accessories/products/u-poe-af
